VIRGO S2 Mini
Touch Thermal Imager
Product
Overview
The VIRGO S2
is a compact mini touch thermal imaging device featuring photo and video
recording capabilities. With an intuitive touch interface and lightweight
design, it can be used with various mounting options, including handheld,
helmet-mounted, or rail-mounted configurations. The device is powered by a
16340 battery and supports Type-C charging.
Features
- Compact mini design, easy to
carry
- Touchscreen operation for
intuitive control
- Supports photo and video
recording
- Multiple display modes with
pseudo-color options

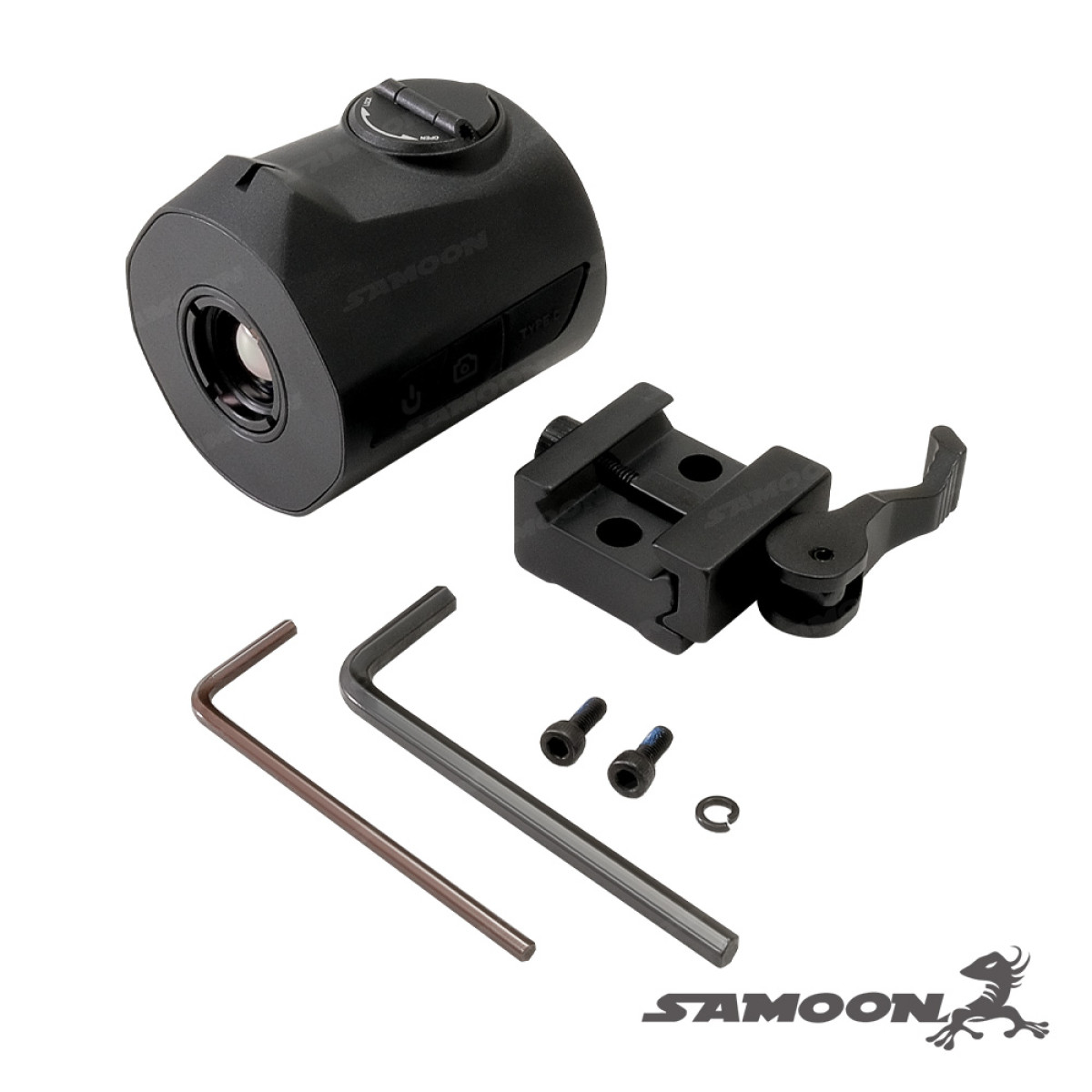

- Compatible with various mounting
solutions (handheld / helmet / rail)
- Powered by a 16340 lithium
battery
Function
Description
Power
Button
。
Long
press: Power on / Power off
。
Short
press: Access quick menu
/ Video Button
。
Short
press: Take a photo
。
Long
press: Start / Stop video recording
Touch
Display Screen
。
Swipe
left / right: Switch display modes
。
Tap
menu options: Adjust brightness, contrast, and display settings

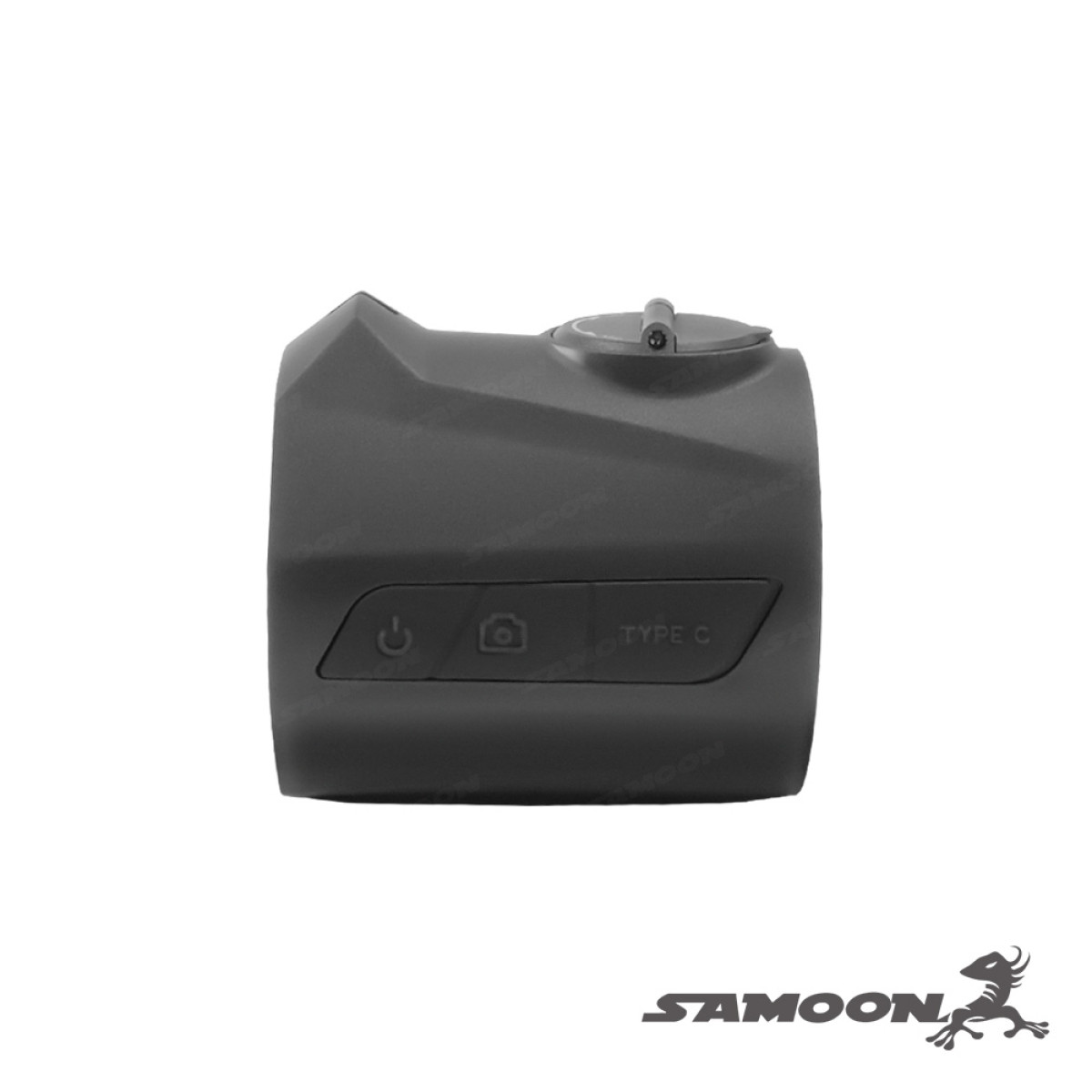

Product
Components
- Lens
- Power button
- Photo / Video button
- Touch display screen
- Type-C charging port

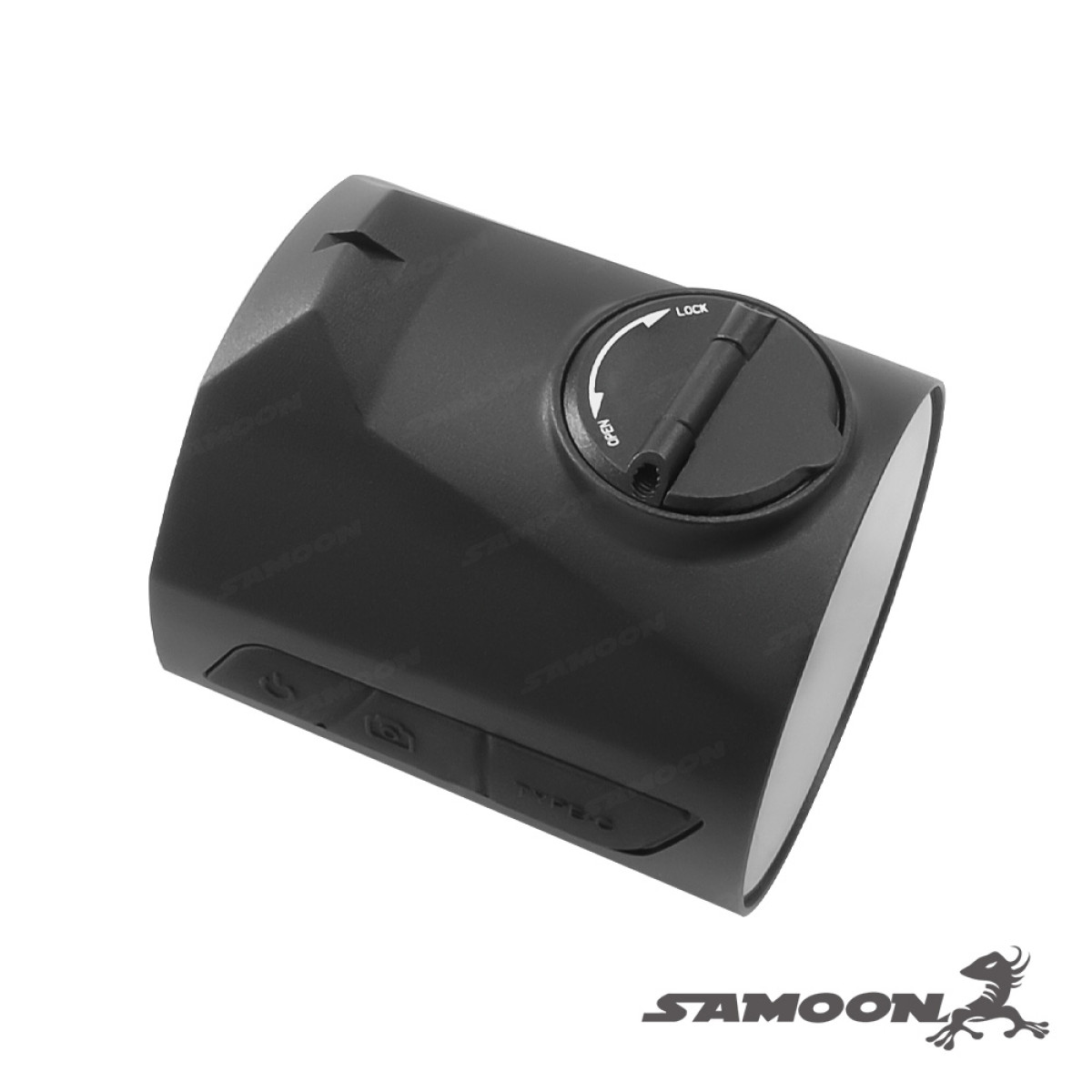

- Battery cover
- Mounting interface
Battery &
Charging Information
- Battery type: 16340
- Charging voltage: DC 5V
- Charging interface: Type-C
⚠️ Important Notes
- This device does not support
direct charging. Please remove the battery before charging.
- Do not charge the battery in
environments exceeding 40°C (104°F).
Precautions
- Do not aim the lens directly at
the sun or high-temperature heat sources
- The lens is a precision optical
component; avoid impact or scratches
- Use the included lens cloth for
cleaning
- Remove the battery when the
device will not be used for an extended period
- Discontinue use immediately if
any damage or abnormal condition is detected
