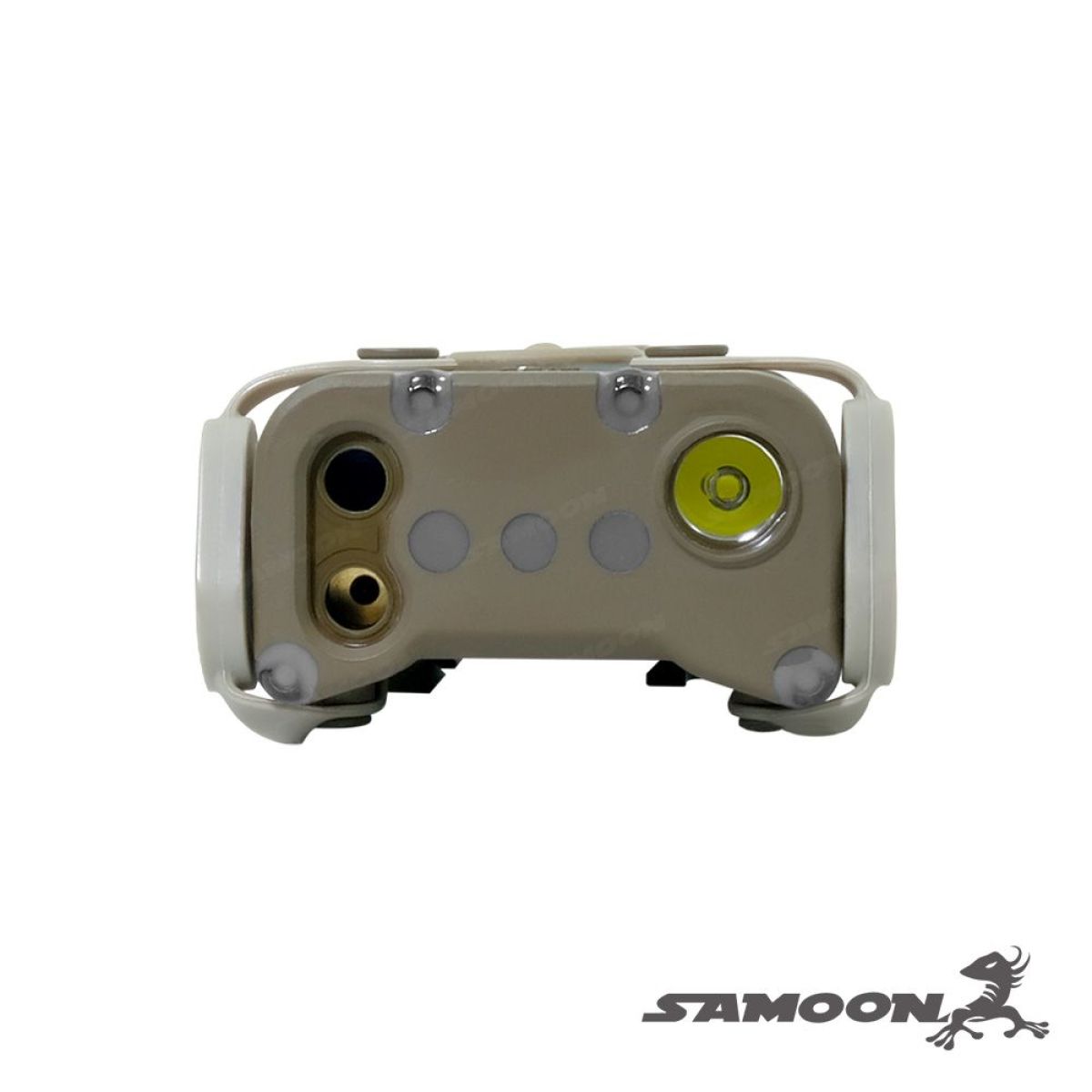

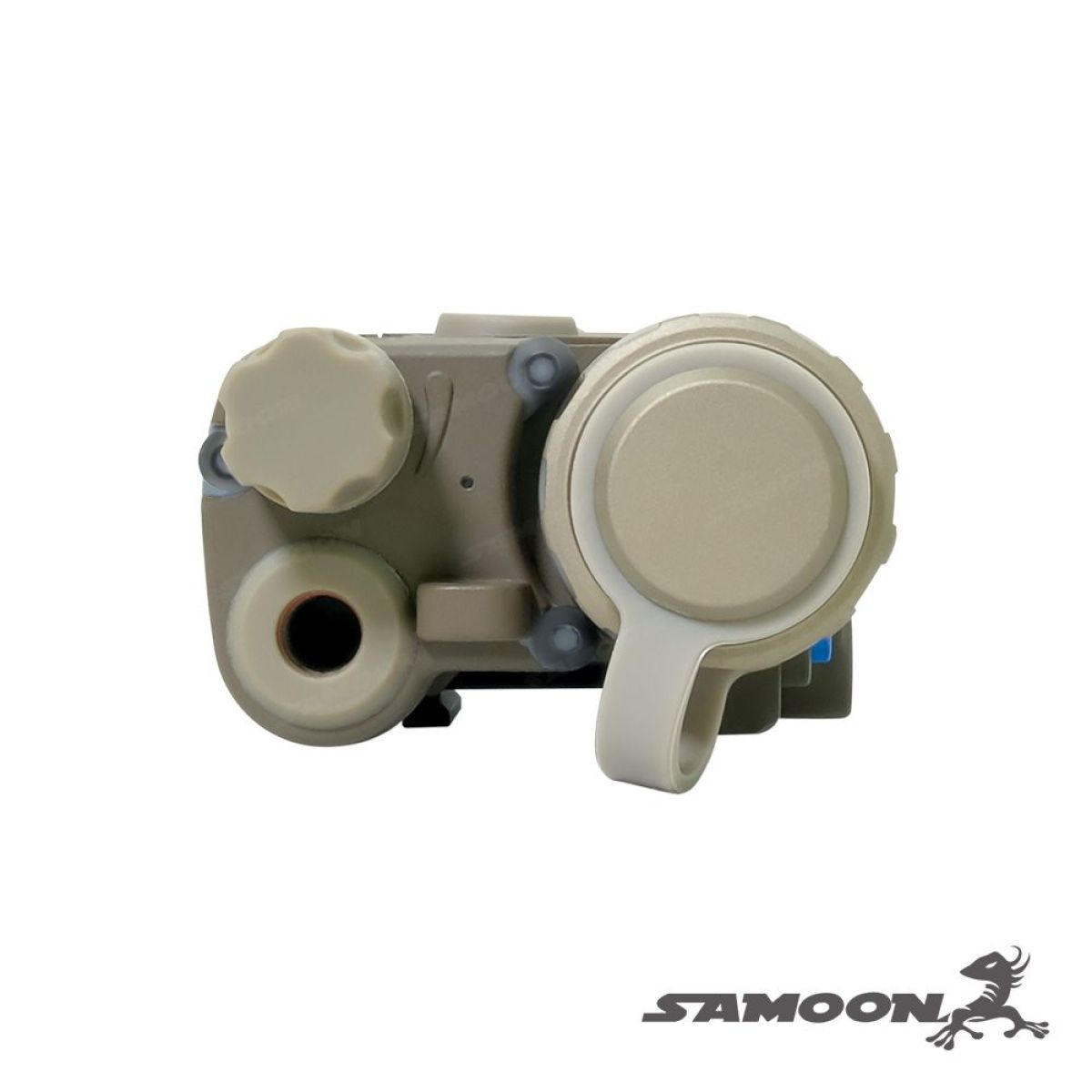

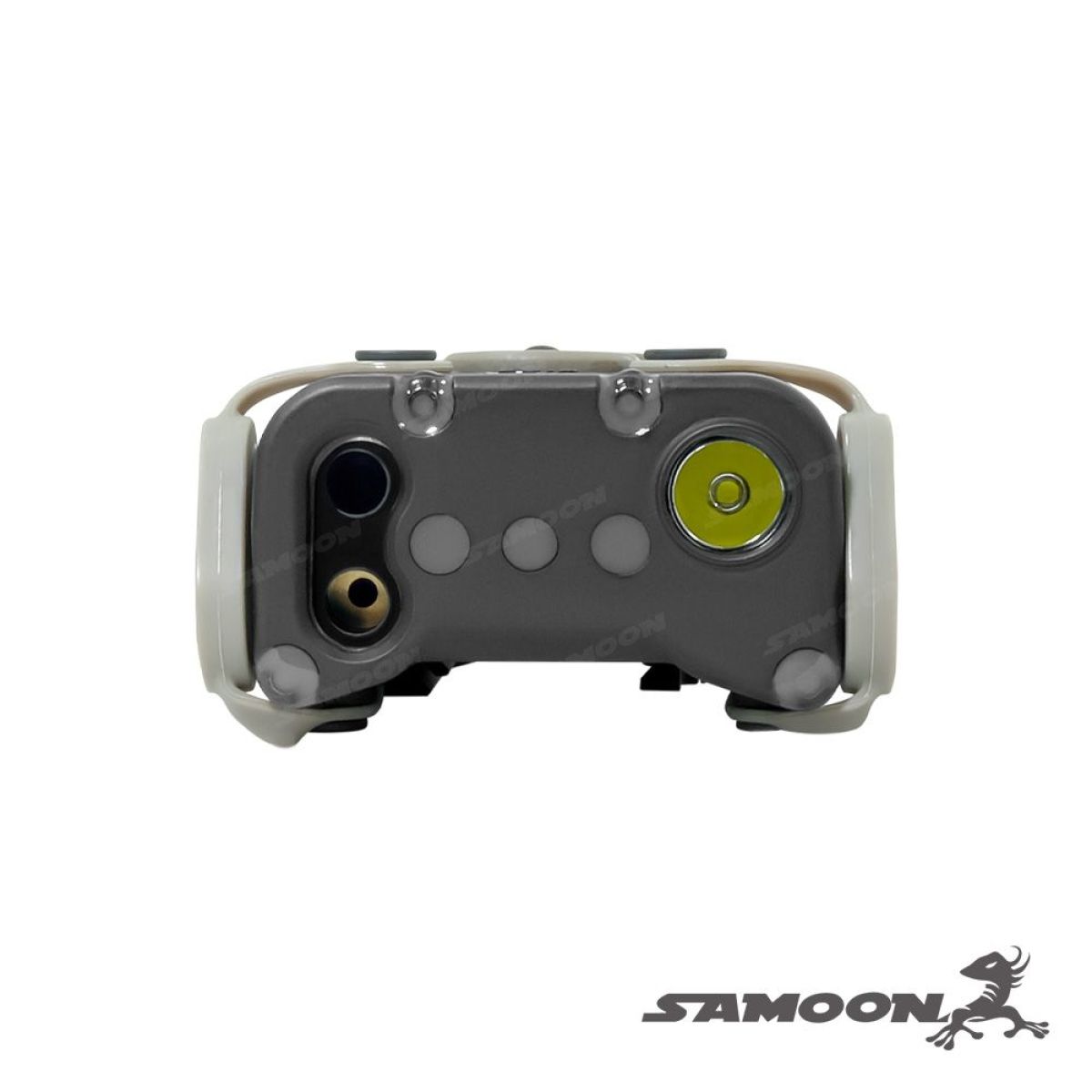

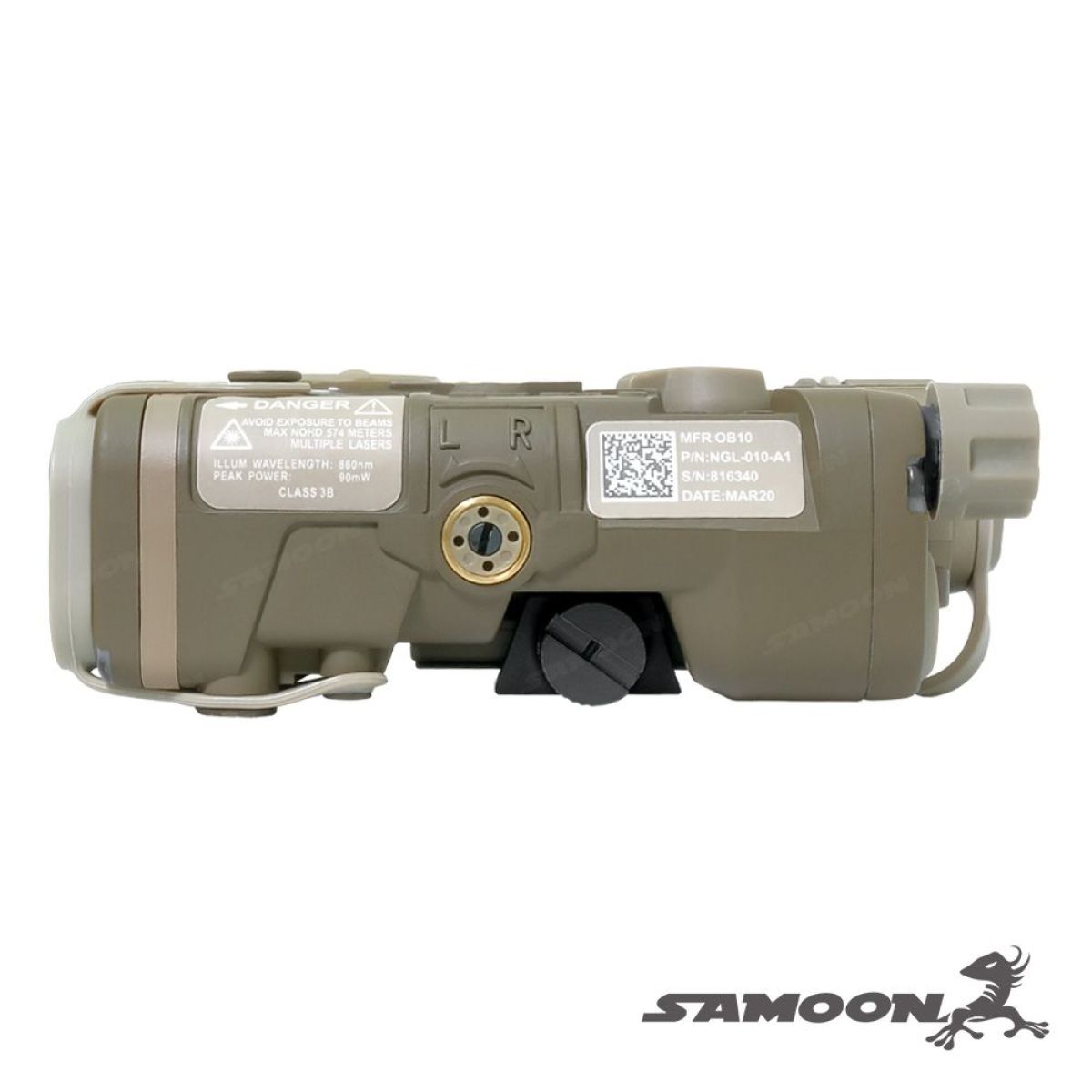

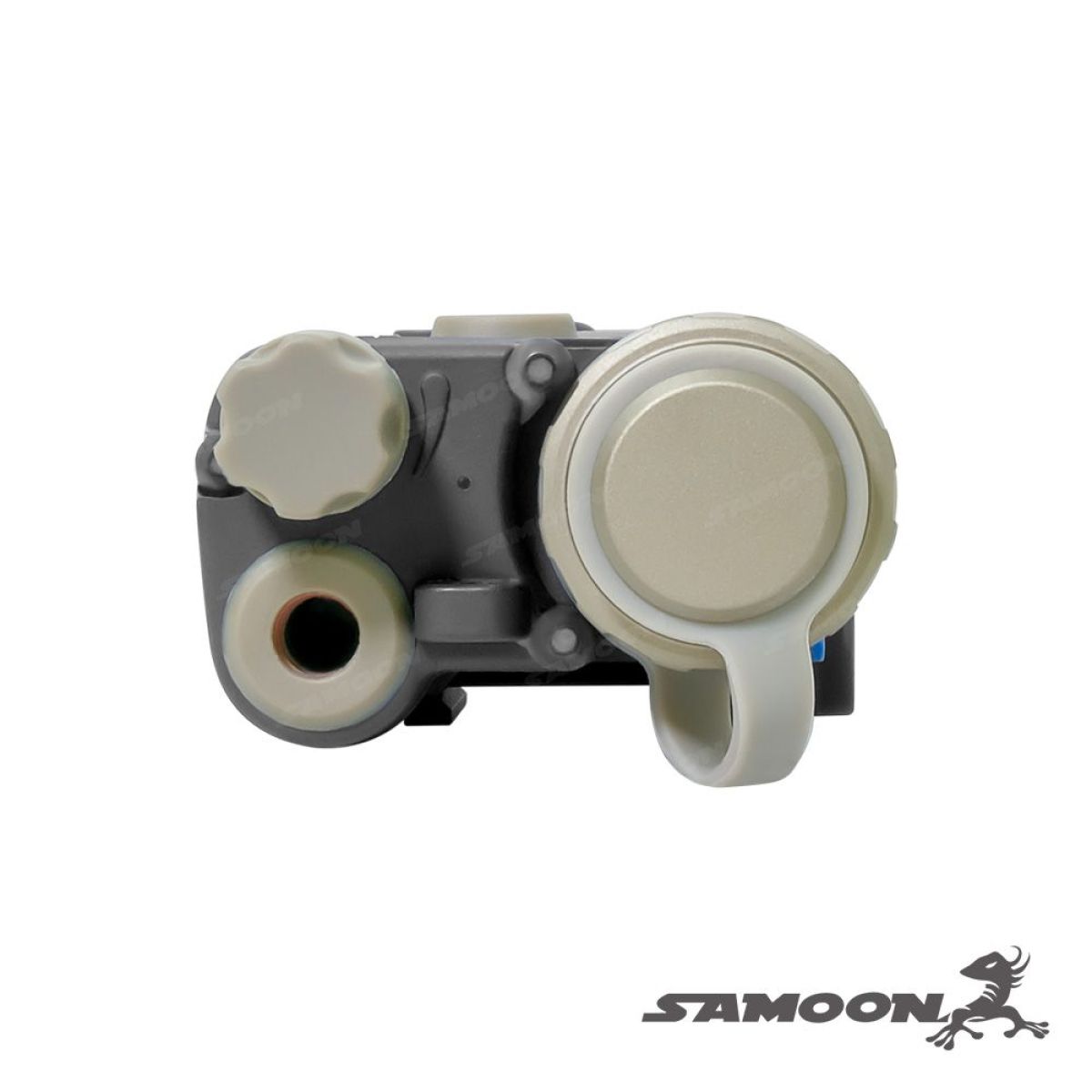

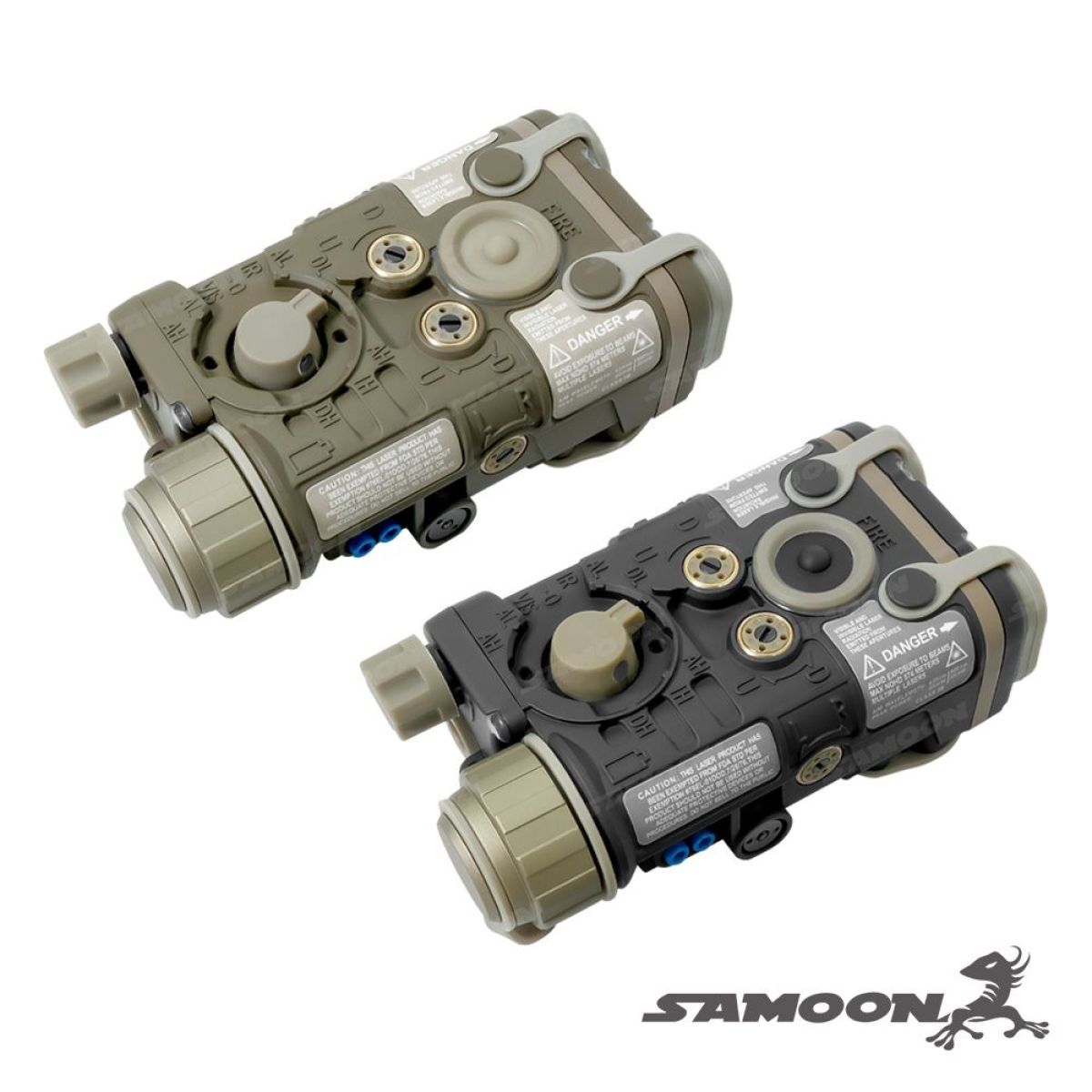

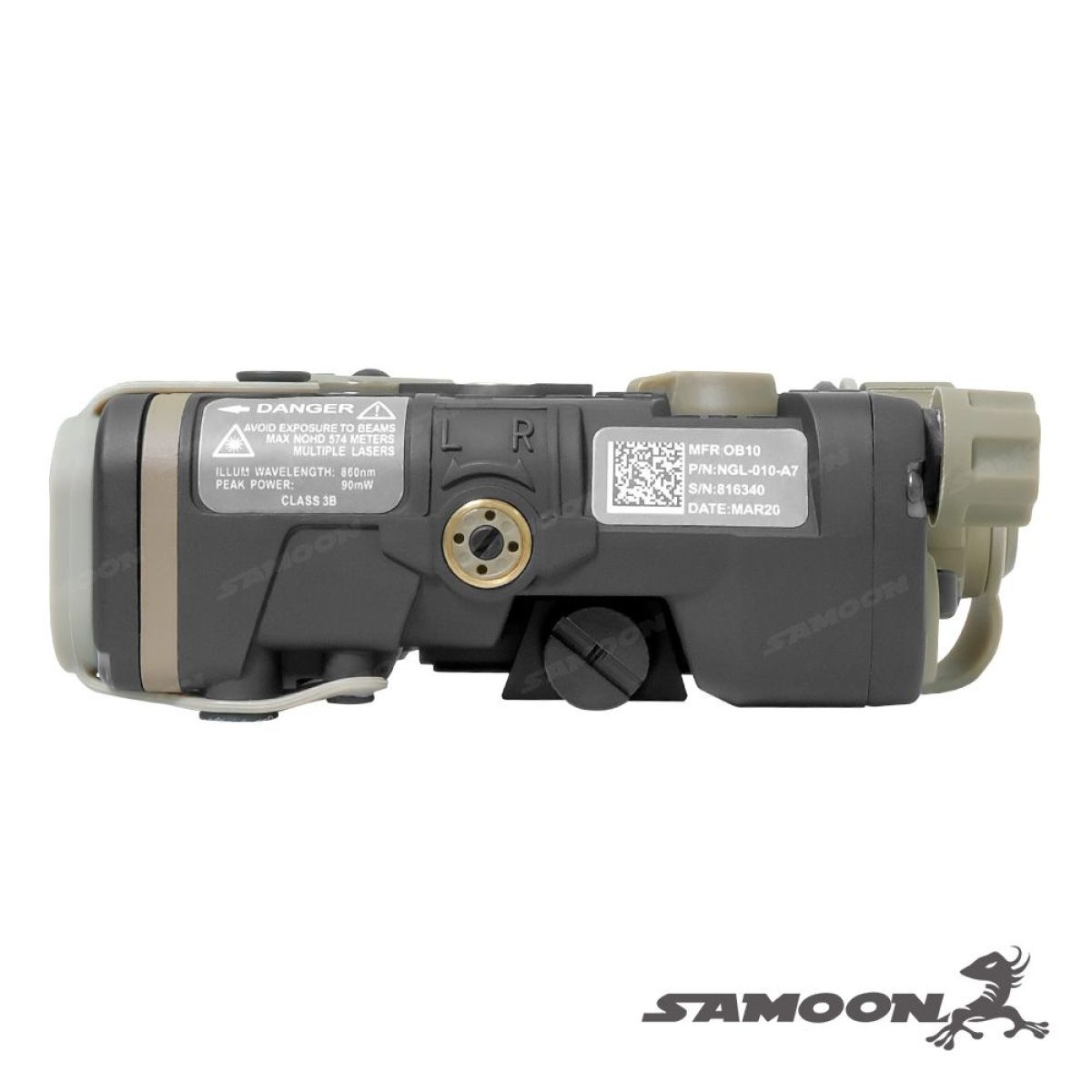

NGAL Mid Version Metal LED IR Illuminator Green Laser LA23 Interface(Replica)
$34.50
- Product Code: NGAL-GLIRIL
- Availability: In Stock
Available Options
NGAL Mid Version Metal LED IR Illuminator Green Laser LA23 Interface(Replica)
Product
Features

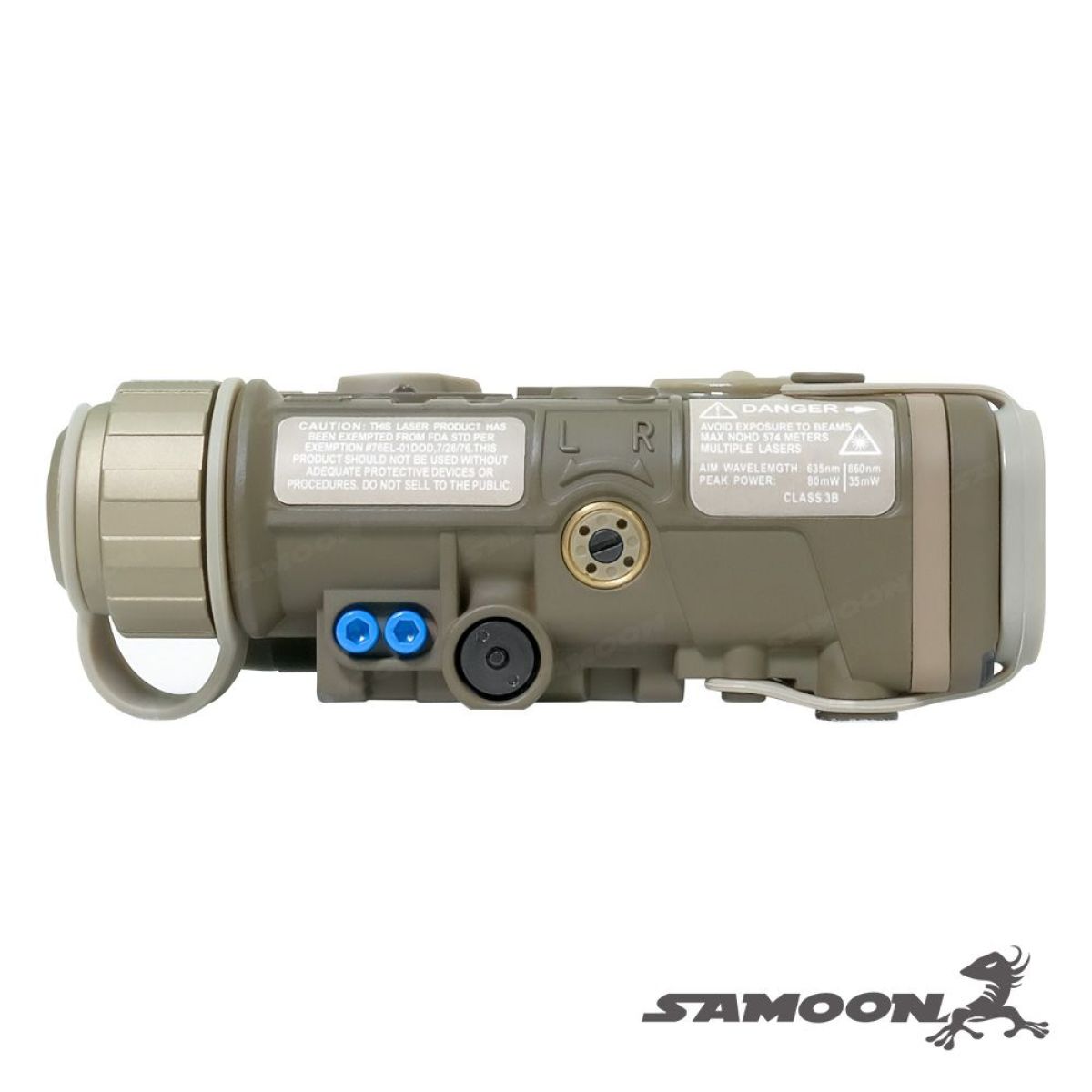

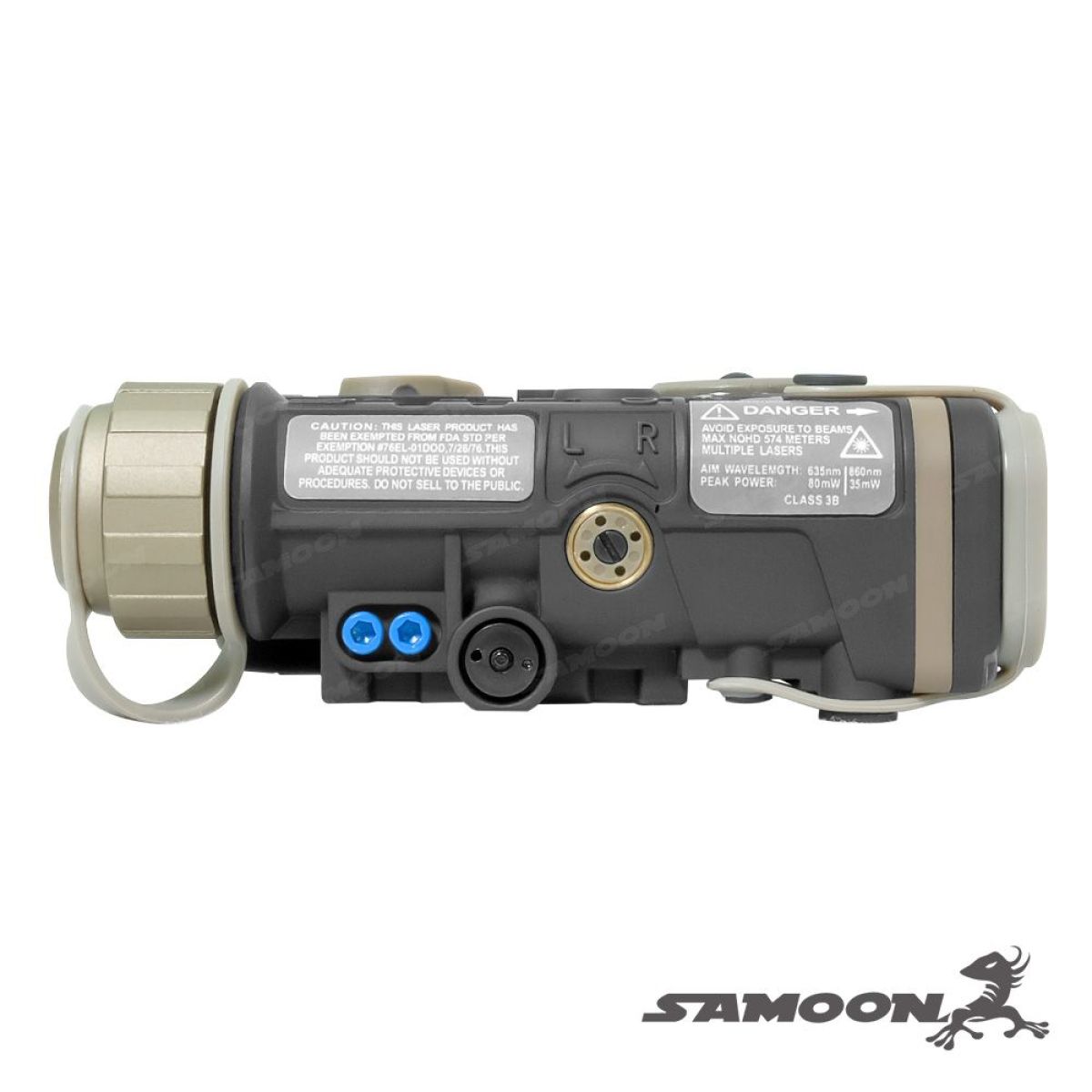

- Mid
version appearance with metal housing and raised markings offering
excellent proportions and overall build quality
- Dual
laser system supporting green visible laser and IR laser
- LED and
IR illumination suitable for both daytime and nighttime use
- Multiple
power levels allowing free switching between low and high output modes

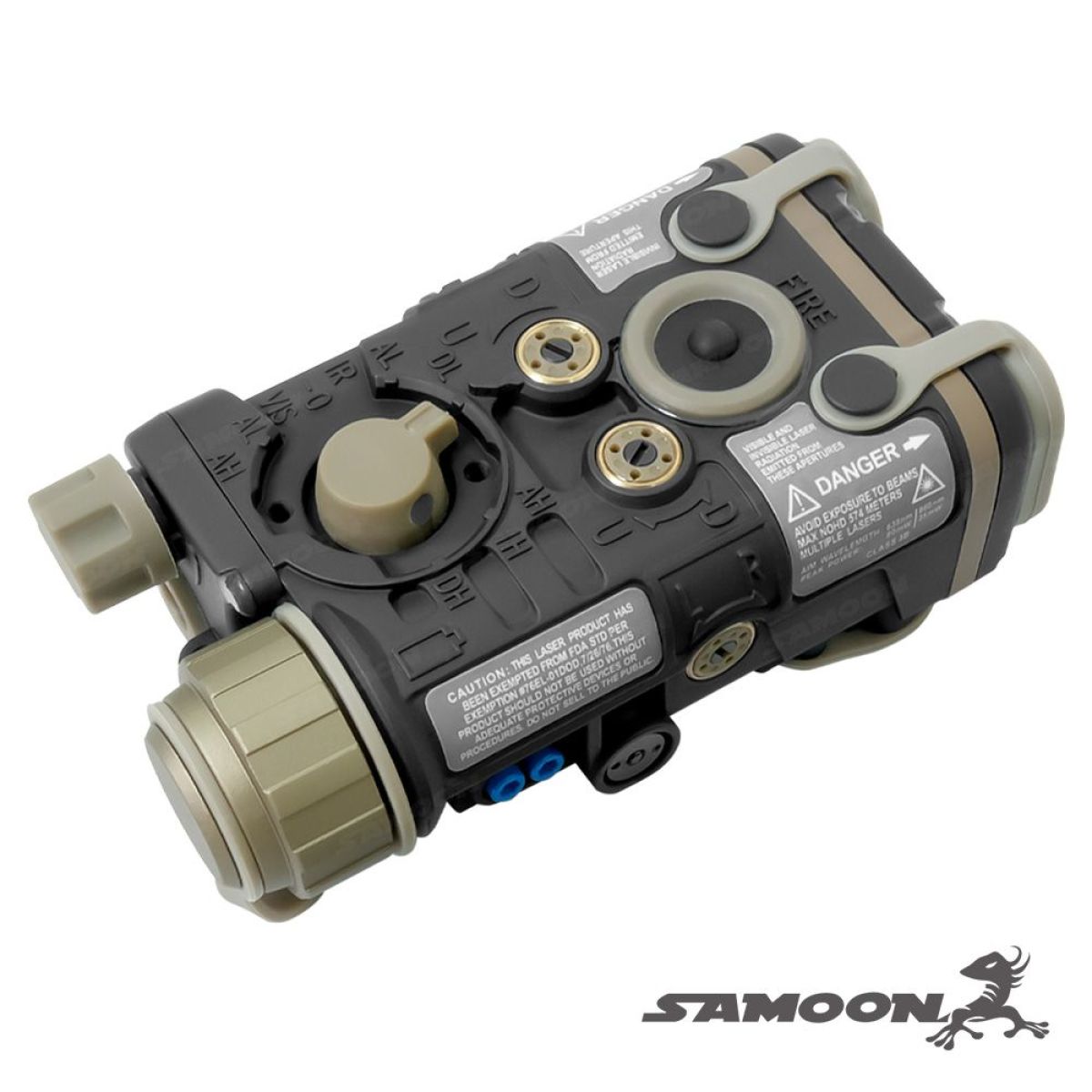

- Rotary
selector design for intuitive and quick mode switching

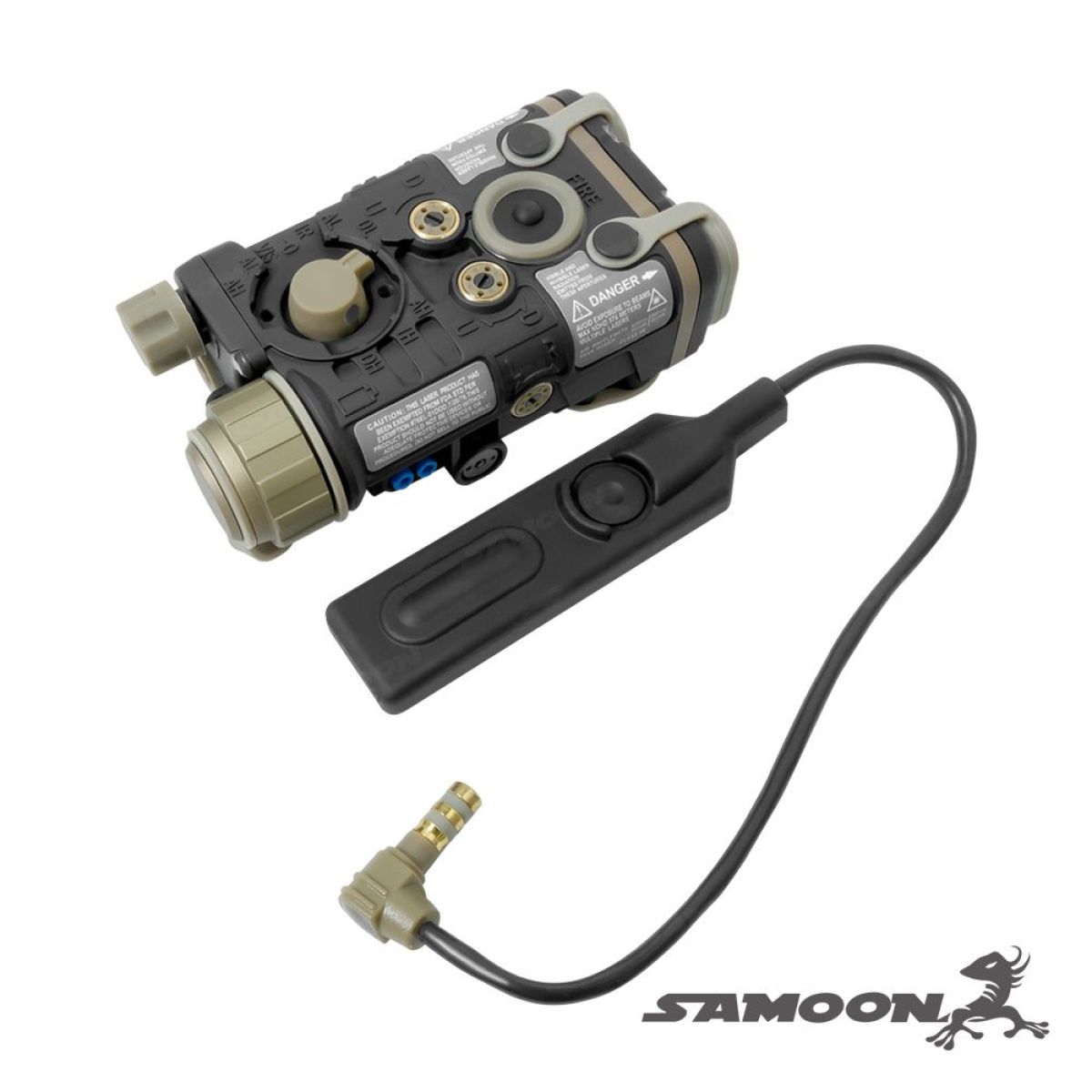

- Supports
remote switch operation and compatible with pressure pad tail switch
- LA23
interface compatible with common NGAL mounting standards

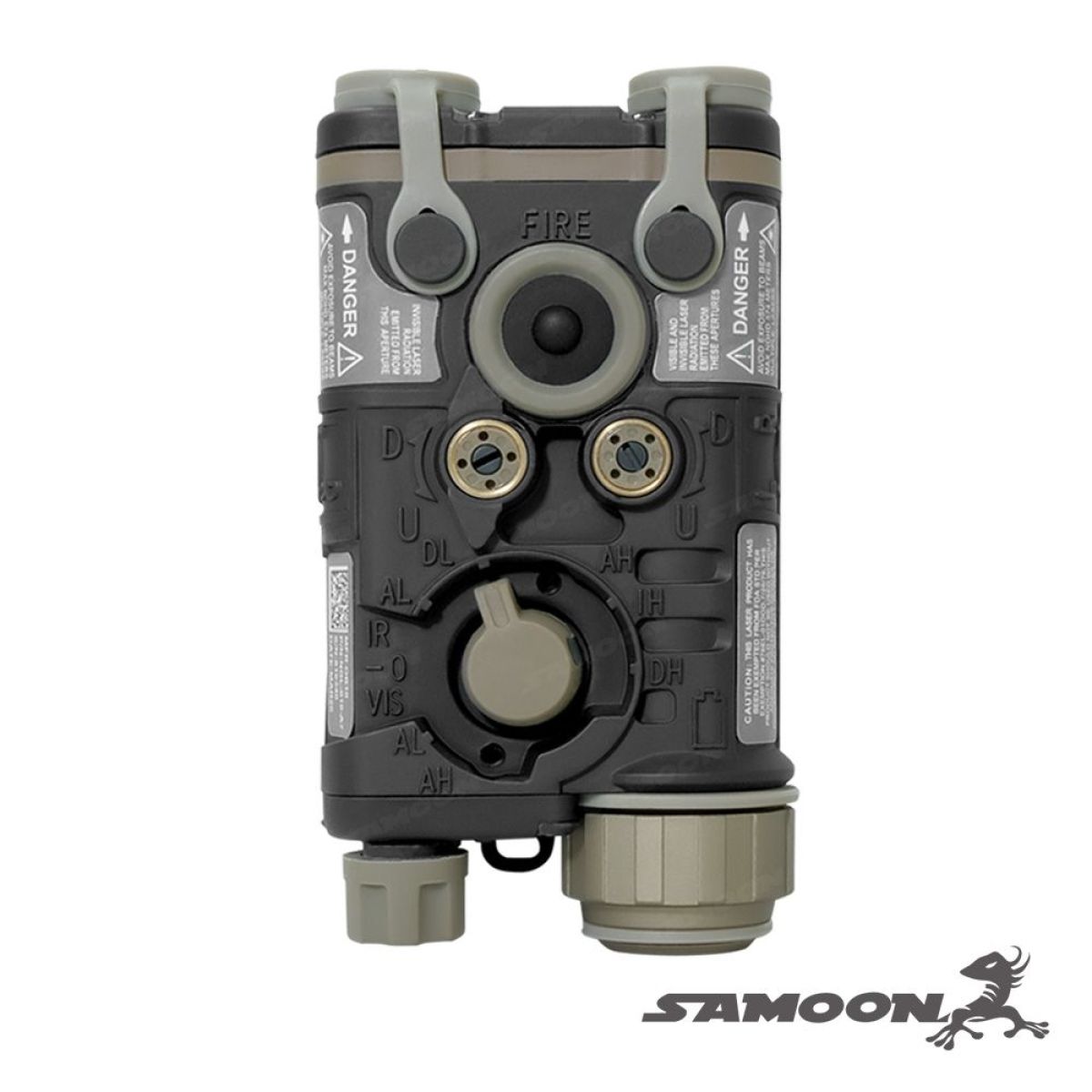

Operating
Modes Gear
- AH VIS High
Power Visible Laser
- AL VIS Low
Power Visible Laser
- O Sleep
Mode
- AL IR Low
Power IR Laser
- DL IR Low
Power IR Laser and IR Illuminator
- AH IR High
Power IR Laser
- IH High
Power IR Illuminator
- DH High
Power IR Laser and IR Illuminator
When
the LED remains constantly on long press the main switch or remote tail switch
to activate strobe mode
Specifications
- Dimensions
3.6 × 2.0 × 1.25 in
- Weight
Less than 155g including tail switch
- Battery
Type CR123 or AA
- Battery
Life Approx 1.5 hours in dual high power mode
- Shock
Resistance Level ≥ 7.62
- Waterproof
Rating IPX4
Visible
Aiming Laser
- Low
Output Power ≤ 4.9 mW Class 3R
- High
Output Power Green ≤ 10 mW Class 3B
- Wavelength
Green 520 nm ±15
- Beam
Divergence 0.3 ±0.2 mrad
IR
Aiming Laser
- Low
Output Power ≤ 3 mW Class 3R
- High
Output Power ≤ 50 mW Class 3B
- Wavelength
850 nm ±15
- Beam
Divergence 0.3 ±0.2 mrad
LED
Illumination
- Low
Output Power ≤ 2W
- High
Output Power ≤ 7W
